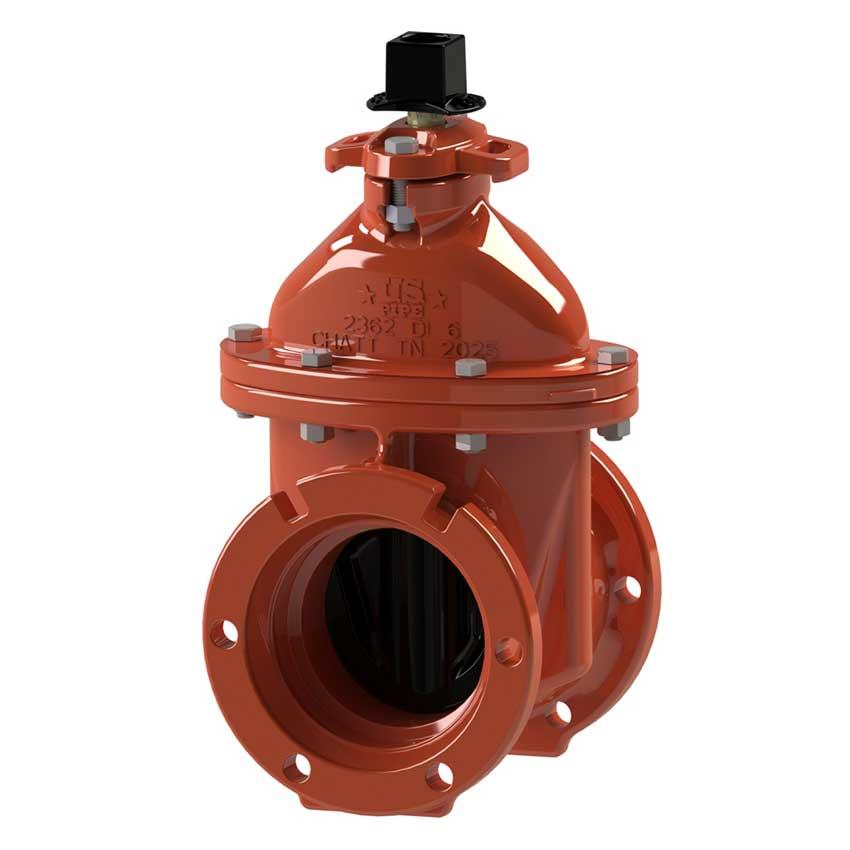

2-12 Inch A-USP2 RWGV MJxMJ

Catalog numbers:

• A-USP2-20 Mechanical joint ends (with accessories unassembled)
• A-USP2-23 Mechanical joint ends (less accessories)
• A-USP2-25 Mechanical joint ends (with transition gaskets accessories unassembled)

Specifications:

• Sizes: 2″, 3″, 4″, 6″, 8″, 10″, 12″
• Meets or exceeds all applicable requirements of ANSI/AWWA C509 Standard, UL 262 listed, FM 1120/1130 approved, and certified to ANSI/NSF 61 & 372
• Standard mechanical joint ends comply with ANSI/AWWA C111
• Iron body with nominal 10 mils Pro-Gard^® Fusion Bonded Epoxy Coated interior and exterior surfaces
• Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
• Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
• Non-rising stem (NRS)
• Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
• 2″ square wrench nut – open left or open right
• 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
• UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
• Designed for potable water applications
