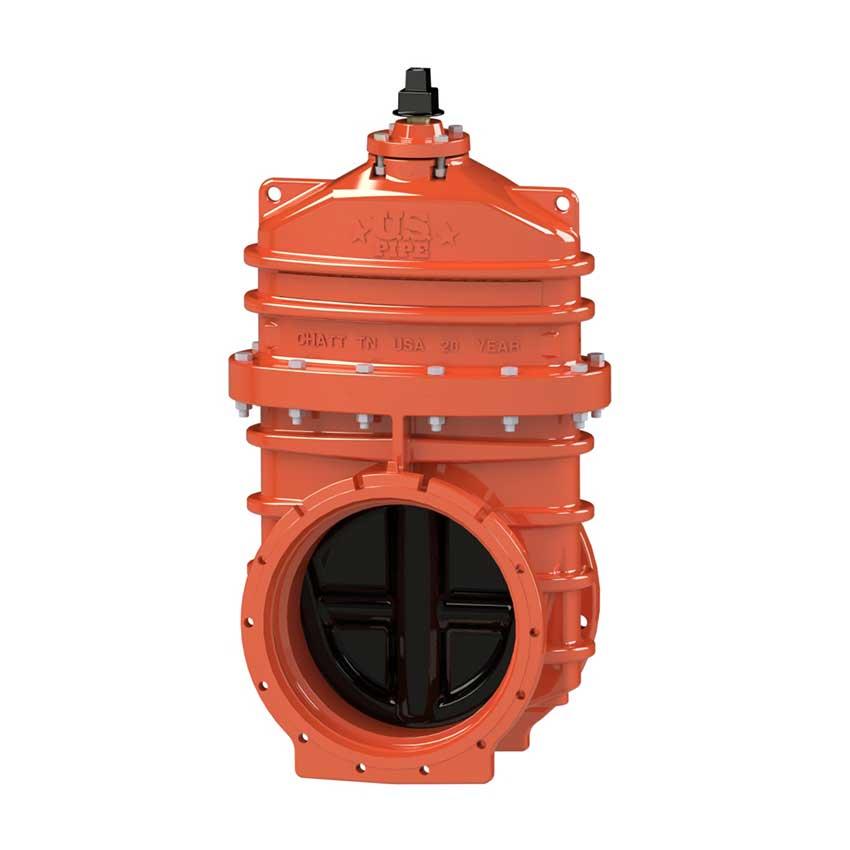

14-48 Inch A-USP1 RWGV MJxMJ

Catalog numbers:

• • A-USP1-20 Mechanical joint ends (with accessories unassembled)
  • A-USP1-23 Mechanical joint ends (less accessories)

Specifications:

• Sizes – 14″, 16″, 18″, 20″, 24″, 30″, 36″, 42″, 48″
• Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, UL 262 Listed (thru 24”), FM 1120/1130 Approved (thru 16”), and certified to ANSI/NSF 61 & 372
• Mechanical joint end complies with ANSI/AWWA C111 Standard.
• Ductile Iron body and bonnet with nominal 10 mils Pro-Gard^® Fusion Bonded Epoxy Coated interior and exterior surfaces; 42″ and 48″ valves coated with HP Epoxy coating.
• Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
• Ductile Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron.
• Non-rising stem (NRS)
• Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
• 2″ square wrench nut (optional bevel or spur gearing) – open left or open right. 30″-48″ require a Spur Gear or Bevel Gear
• 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3400 kPa/34 barg) static test pressure
• 14″ and 16″ sizes – UL Listed, FM Approved: 250 psig (1725 kPa/17 barg)
• 18″, 20″ and 24″ sizes – UL Listed: 175 psig (1200 kPa/12 barg); FM Approved: 250 psig (1725 kPa/17 barg)
• Designed for potable water applications
