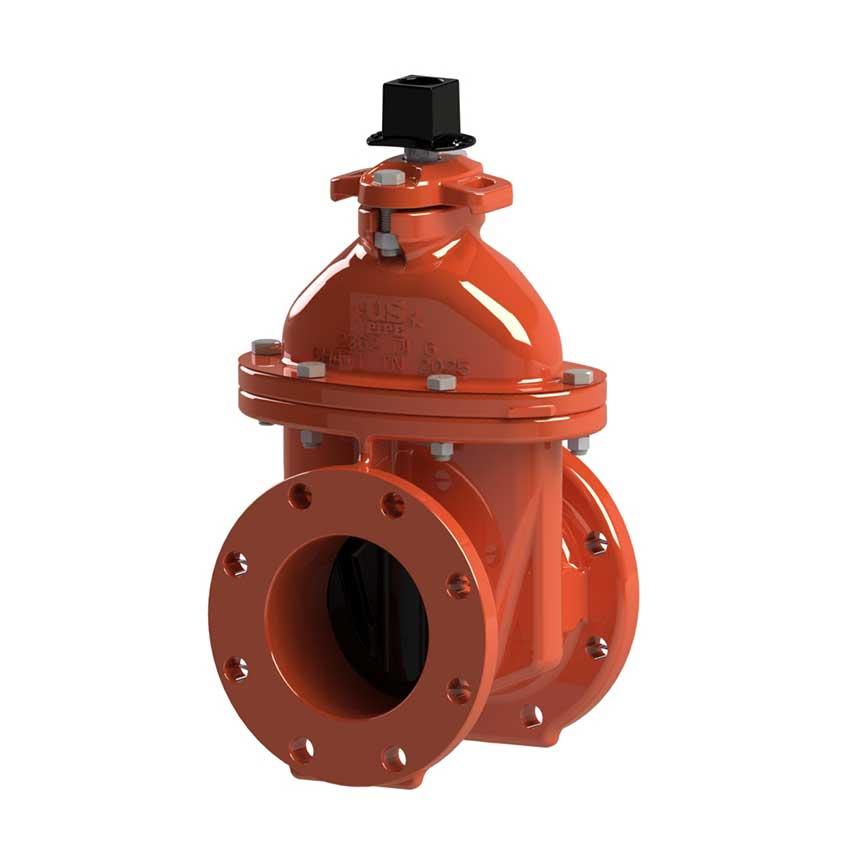

2-12 Inch A-USP2 RWGV FLxFL
Catalog number: A-USP2-6
Specifications:
- Flanged ends
- Sizes – 2″, 2-1/2″, 3”, 4″, 6″, 8″, 10″, 12″
- Meets or exceeds all applicable requirements of ANSI/AWWA C509 and C515, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 and 372†
- Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150
- Iron body with nominal 10 mils Pro-Guard® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
- Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
- Non-rising stem (NRS)
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2″ square wrench nut – open left or open right
- 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
- UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
- Designed for potable water applications
31
People watching this product now!
Description
Options*:
- Position indicators
- Stainless steel stem: Type 304, Type 316
- 2″ square wrench nut
- P/N 10/16 Drilling
- EPDM Disc and O-rings
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
