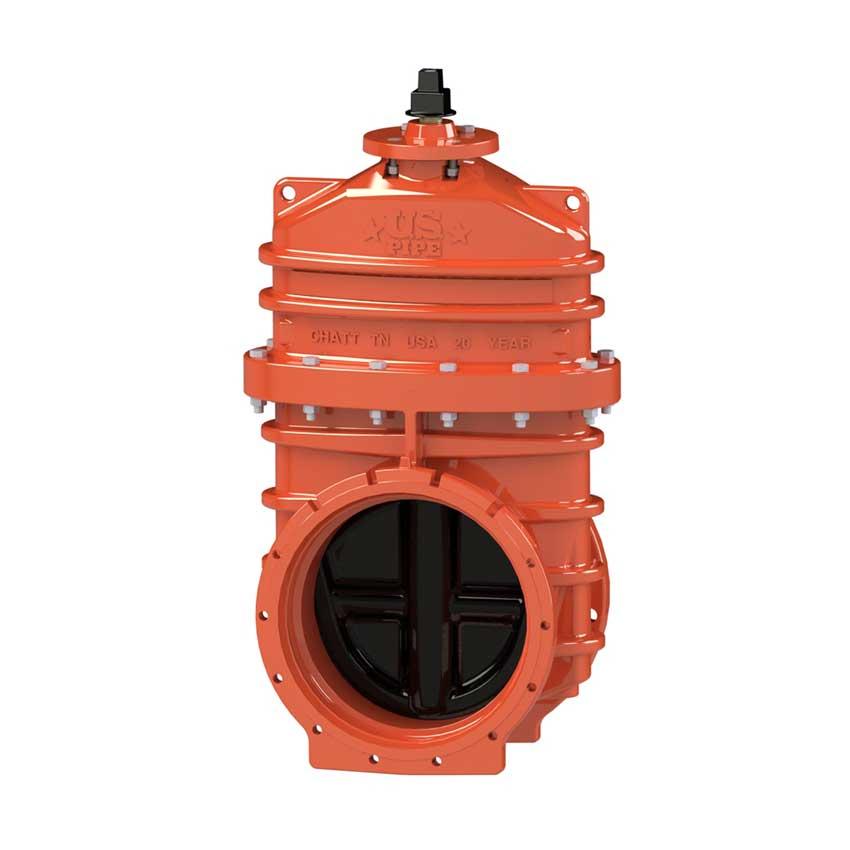

14-24 Inch P-USP1 RWGV PIV MJxMJ

Catalog numbers:

• P-USP1-20 (with M.J. Accessories+)
• P-USP1-23 (less M.J. Accessories)

Specifications:

• Mechanical joint ends
• Indicator Post Style Stuffing box
• 2″ Square Operating Nut
• 14″, 16″, 18″, 20″ and 24″ sizes
• UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
• 14″ and 16″ sizes are also FM 1120/1130 approved
• Ductile iron body with Mueller^® PRO-GARD^® Fusion Bonded Epoxy Coated interior and exterior surfaces
• Non-rising bronze stem
• Rubber encapsulated iron wedge, no iron exposed
• 14″-16″ 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3400 kPa/34 barg) hydro static test
• 18″-24″ UL Listed 175psig (1200 kPa/12 barg) maximum working pressure, FM Approved 250psig (1725 kPa/17 barg), 500psig (3450 kPa/35 barg) hydro static test
• Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
• Epoxy coating meets or exceeds ANSI/AWWA C550
• Meets or exceeds all applicable requirements of ANSI/AWWA C515
