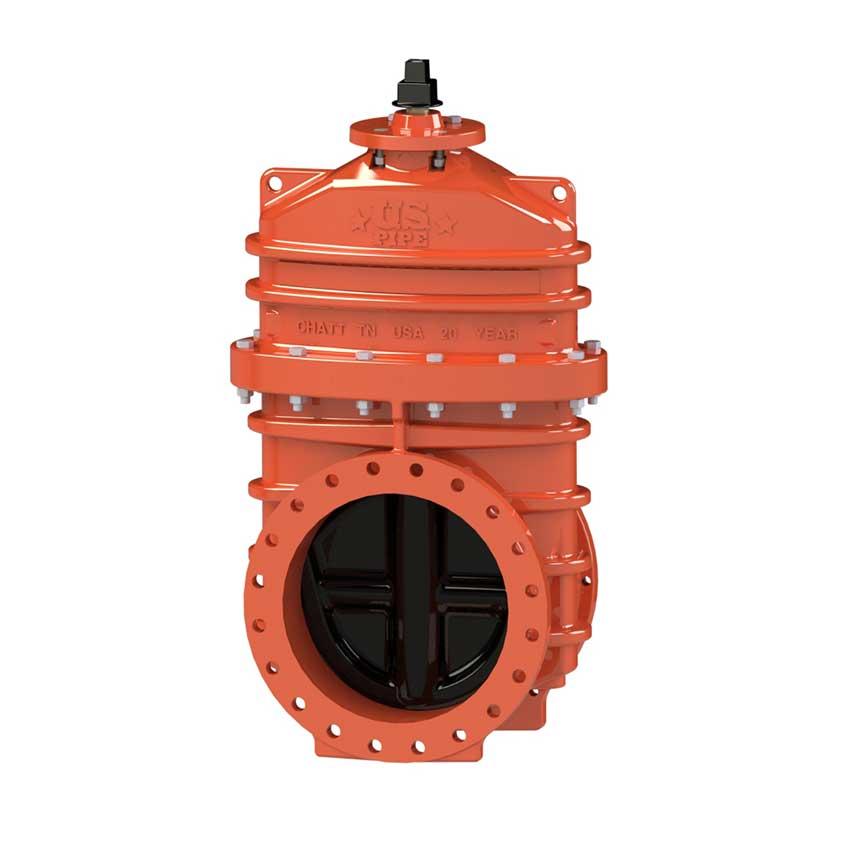

4-12 Inch P-USP1 RWGV PIV FLxMJ
Catalog numbers:
- P-USP1-16 (with M.J. Accessories+)
- P-USP1-19 (less M.J. Accessories)
Specifications:
- Flanged X mechanical joint ends
- Indicator Post Style Stuffing box
- 2″ Square Operating Nut
- 4″, 6″, 8″, 10″ and 12″ sizes
- UL 262 listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372.
- Ductile iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Non-rising bronze stem
- Rubber encapsulated iron wedge, no iron exposed
- 300 psig (2000 kPa/20 barg) maximum working pressure, 600 psig (4100 kPa/ 41 barg) static test pressure
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- Epoxy coating meets or exceeds ANSI/AWWA C550
- Flanged end drilling complies with ASME/ANSI B16.1 Class 125
- Meets or exceeds all applicable requirements of ANSI/AWWA C515
71
People watching this product now!
Description
Options:
- Stainless steel stems: Type 304 and Type 316
- ASTM B98-C66100/H02 stem
- EPDM disc and O-rings
