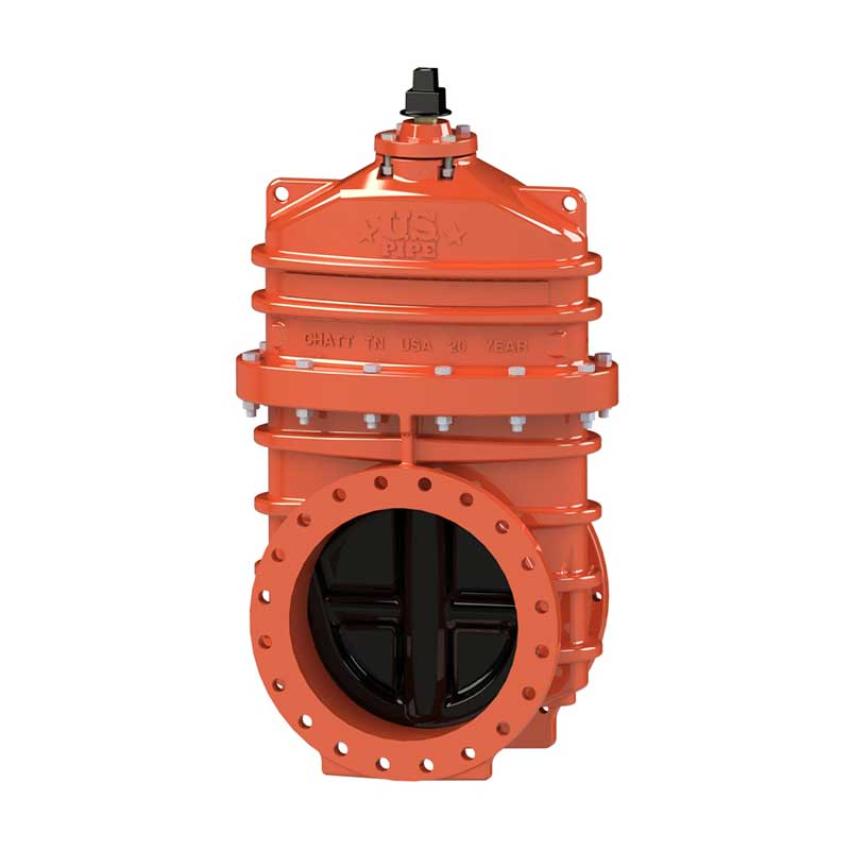

14-54 Inch A-USP1 RWGV FLxFL
Catalog number: A-USP1-6
Specifications:
- Flanged ends
- Sizes – 14″, 16″, 18″, 20″, 24″, 30″, 36″, 42″, 48″, 54″
- Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard (thru 48”), UL 262 Listed (thru 24”), FM 1120/1130 Approved (thru 24”), and certified to ANSI/NSF 61 & 372
- Flanged end dimensions and drilling complies with ASME/ANSI B16.1 Class 125
- Ductile iron body and bonnet with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy coating interior and exterior surfaces; 42″ – 54″ valves coated with HP Epoxy coating.
- Epoxy coatings meet or exceed all applicable requirements of ANSI/AWWA C550 Standard.
- Ductile iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron.
- Non-rising stem (NRS)
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2″ square wrench nut (optional bevel or spur gearing) – open left or open right 30″ – 54″ require a Spur Gear or Bevel Gear
- 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3400 kPa/34 barg) static test pressure
- 14″ and 16″ sizes – UL Listed, FM Approved: 250 psig (1725 kPa/17 barg)
- 18″, 20″ and 24″ sizes – UL Listed/FM Approved: 175 psig (1200 kPa/12 barg); FM Approved 250 psig (1725 kPa/17 barg)
- Designed for potable water applications
64
People watching this product now!
Description
Options*:
- Stem Options:
- 14″-16″ low zinc, silicon bronze ASTM B98-C66100/H02
- 18″-54″ low zinc, silicon bronze ASTM B763-C99500 Stainless
- Stainless Steel Type 304, Type 316
- Stainless steel fasteners: Type 316
- Bypass 16″- 54″ (2″ on 16″-20″; 2.5″ on 24″; 3″ on 30″- 36″, 4″ on 42″-54″)
- Spur or bevel geared actuator
- EPDM Disc and O-rings, 14″-16″ optional, 18″-54″ standard
- Position indicators
- Handwheel
Resources:
- Operating Manual
- Product Specifications
- Suggested Specifications
- Installation Preparation Check List
- Submittal Drawing 1: (U536570-316)
- Submittal Drawing 2: (U6956)
- Submittal Drawing 3: (U6702-E302)
- Submittal Drawing 4: (U6750-E302)
- Submittal Drawing 5: (U7225)
- Submittal Drawing 6: (U7300)
- Submittal Drawing 7: (U7405)
- Submittal Drawing 8: (U7421)
- Submittal Drawing 9: (U7422)
- Submittal Drawing 10: (U7450)
- Submittal Drawing 11: (U7451)
- Flyer
- Certification of Compliance: 14″ – 24″
- Certification of Compliance: 30″ – 54″
