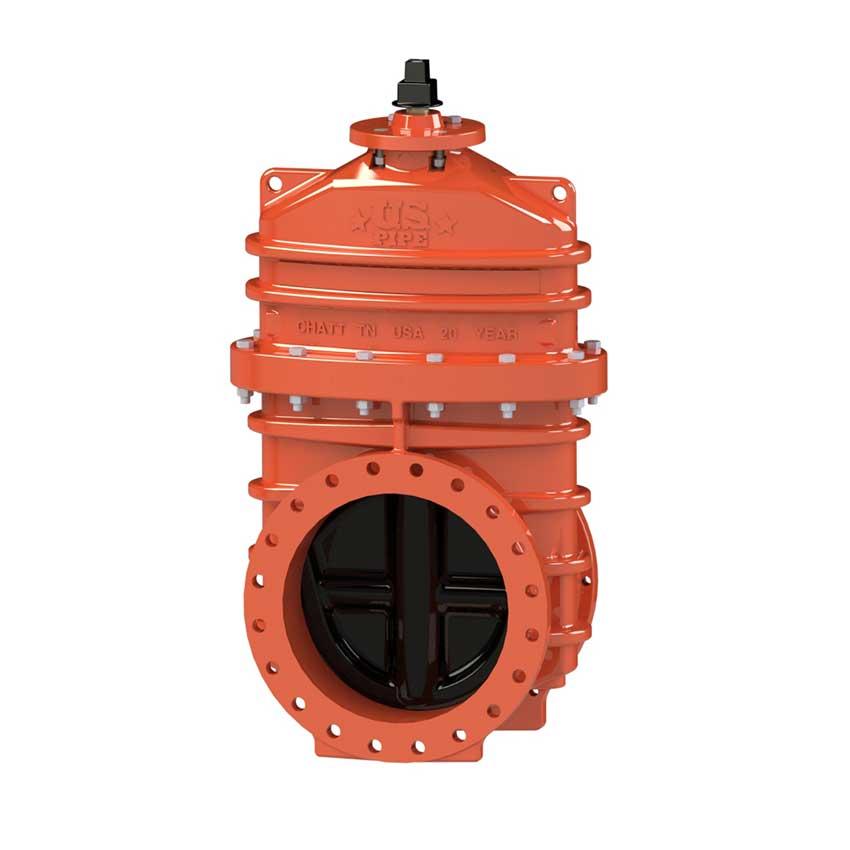

14-24 Inch P-USP1 RWGV PIV FLxFL
Catalog number: P-USP1-6
Specifications:
- Flanged ends
- Indicator Post Style Stuffing box
- 2″ Square Operating Nut
- 14″, 16″, 18″, 20″ and 24″ sizes
- UL 262 listed, FM 1120/1130 Approved and certified to ANSI/NSF 61 & 372
- Ductile iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Non-rising bronze stem
- Rubber encapsulated iron wedge, no iron exposed
- 14″-16″ 250psig (1725 kPa/17 barg) maximum working pressure, 500psig (3400 kPa/34 barg) hydro static test
- 18″-24″ UL Listed 175psig (1200 kPa/12 barg) maximum working pressure, FM Approved, 250psig (1725 kPa/17 barg), 500psig (3450 kPa/35 barg) hydro static test
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- Epoxy coating meets or exceeds ANSI/AWWA C550
- Flanged end drilling complies with ASME/ANSI B16.1 Class 125
- Meets or exceeds all applicable requirements of ANSI/AWWA C515
13
People watching this product now!
Description
Options:
- Stainless steel fasteners: Type 316
- Stainless steel stem: Type 304 and Type 316
- ASTM B98-C66100/H02 stem
- EPDM disc and O-rings (14″-16 option and 18″-24″ standard)
