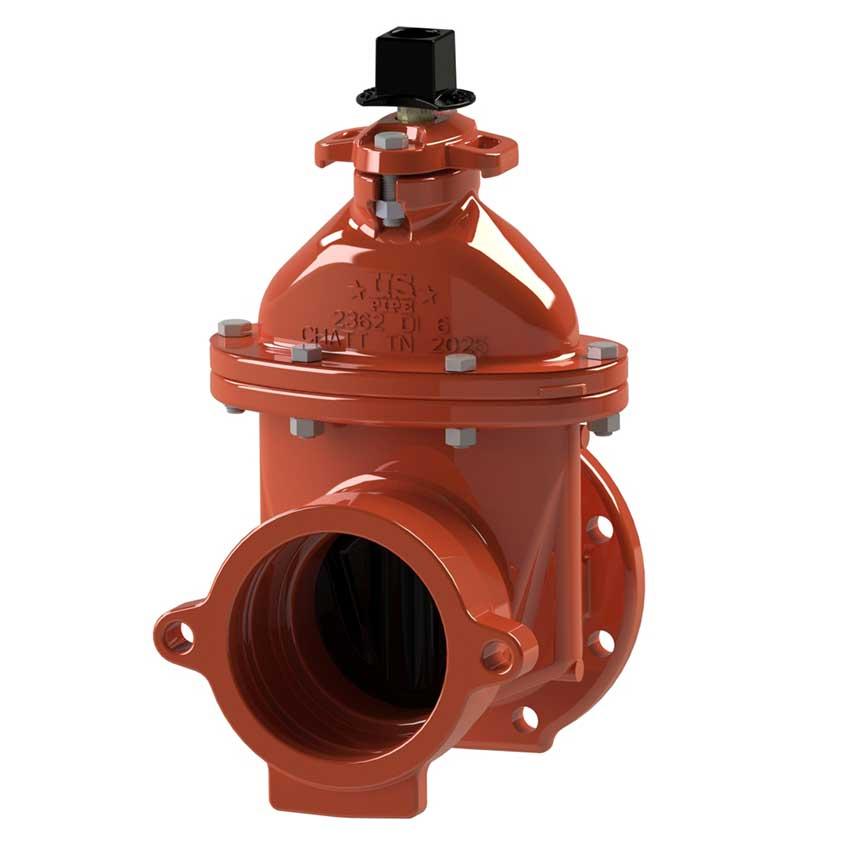

4-12 Inch A-USP2 RWGV SLxFL for Field Lok Gaskets

4″- 12″ A-USP2 RESILIENT WEDGE GATE VALVES – SL x FL (FOR FIELD LOK™†† GASKETS).

Catalog number: A-USP2-62 Slip On (less Field Lok gaskets) x flange end

Specifications:

• Sizes – 4″, 6″, 8″, 12″
• Meets or exceeds all applicable requirements of ANSI/AWWA C509, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
• Slip-on ends with Field Lok gaskets are to be used on ductile iron pipe
• Flanged end drilling complies with ASME/ANSI B16.1 class 125 and B16.42 class 150
• Iron body with nominal 10 mils Pro-Gard^® Fusion Bonded Epoxy Coated interior and exterior surfaces
• Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
• Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
• Non-rising stem (NRS)
• Triple O-ring seal (2 above the thrust collar and 1 below)
• 2″ square wrench nut – open left or open right
• 350 psig (1725 kPa/17 barg) maximum working pressure, 700 psig (3450 kPa/35 barg) static test pressure
• UL Listed, FM Approved: 350 psig (1725 kPa/17 barg)
• Designed for potable water applications
