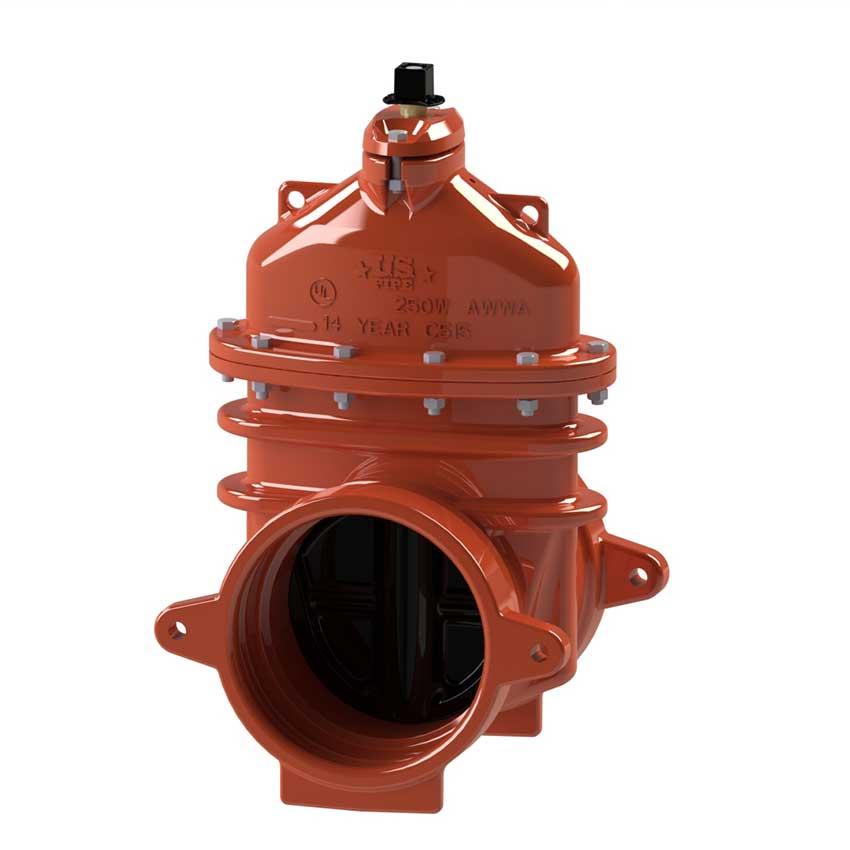

14-16 Inch A-USP1 RWGV SLxSL
Catalog numbers:
- A-USP1-38 Slip-on† ends with gasket
- A-USP1-40 Slip-on† ends less gasket
Specifications:
- Sizes – 14″, 16″
- Meets or exceeds all applicable requirements of ANSI/AWWA C515 Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Slip-on ends fit plain end of classes 50 and 100 cast iron; ductile iron and AWWA C905 cast iron O.D. PVC
- Ductile iron body with nominal 10 mils Pro-Gard® Fusion Bonded Epoxy Coating interior and exterior surfaces
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard.
- Ductile iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
- Non-rising stem (NRS)
- Triple O-ring seal (2 above the thrust collar and 1 below)
- 2″ square wrench nut – open left or open right
- 250 psig (1725 kPa/17 barg) maximum working pressure, 500 psig (3450 kPa/35 barg) static test pressure
- UL Listed, FM Approved – 250 psig (1725 kPa/17 barg)
- Designed for potable water application
26
People watching this product now!
Description
Options*:
- Position indicators
- Spur or bevel geared actuator
- Handwheel
- Stainless Steel stem: Type 304, Type 316
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
- EPDM Disc and O-rings
· Add AUSP1 COC 14-24, attached
Resources:
