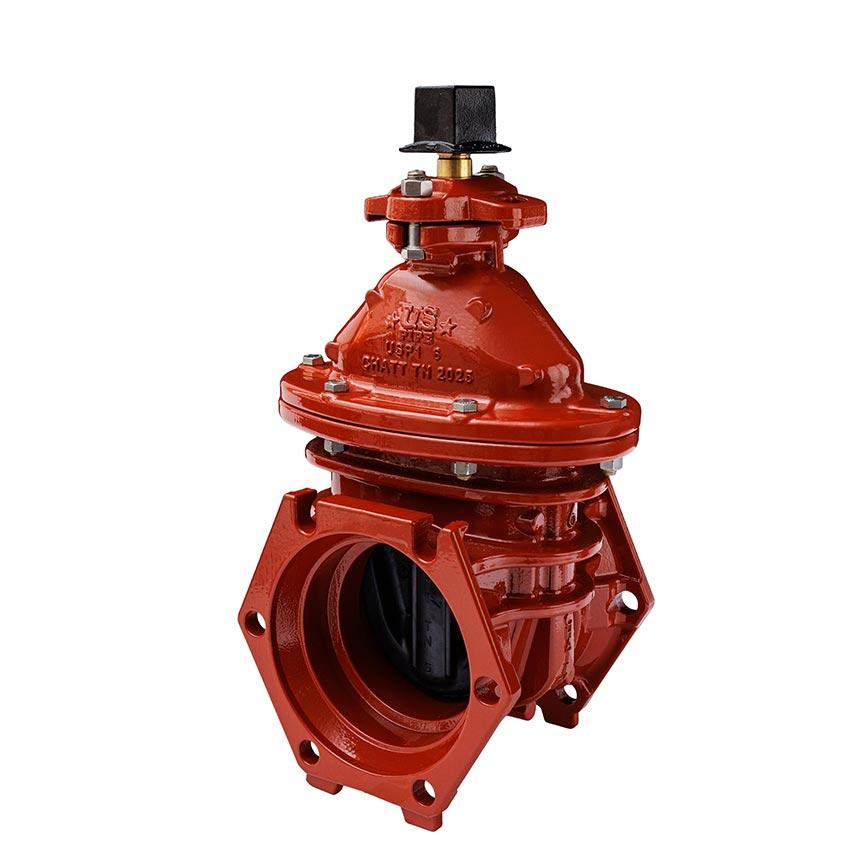

3-12 Inch A-USP1 RWGV MJxMJ
Catalog numbers:
- USP1-20 Mechanical joint ends (with accessories unassembled)
- USP1-23 Mechanical joint ends (less accessories)
- USP1-25 Mechanical joint ends (with transition gaskets accessories unassembled)
Specifications:
- Sizes – 3″, 4″, 6″, 8″, 10″, 12″
- Non-rising stem (NRS)
- Meets or exceeds all applicable requirements of ANSI/AWWA C515*** Standard, UL 262 Listed, FM 1120/1130 Approved, and certified to ANSI/NSF 61 & 372
- Standard mechanical joint ends comply with ANSI/AWWA C111
- Nominal 10 mils Pro-Gard® Fusion Bonded Epoxy coated interior and exterior surfaces. Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
- Epoxy coating meets or exceeds all applicable requirements of ANSI/AWWA C550 Standard
- Iron wedge, symmetrical & fully encapsulated with molded rubber; no exposed iron
- Triple O-ring seal stuffing box (2 above the thrust collar and 1 below)
- 2″ square wrench nut–-open left or open right
- 300 psig (2000 kPa/20 barg) maximum working pressure, 600 psig (4100 kPa/ 41 barg) static test pressure
- UL Listed, FM Approved: 300 psig (2000 kPa/20 barg)
- Designed for potable water applications
48
People watching this product now!
Description
Options*:
- Position indicators
- Stainless steel stem: Type 304, Type 316
- Low zinc, silicon bronze ASTM B98-C66100/H02 stem
- Handwheel
- EPDM Disc and O-rings
