Drilling Machine art. 230/19
The Foratubi Ravetti® are characterized by:
- Lead screw and threaded body
- Manual feed
- Manual rotation with the possibility of pneumatic or hydraulic motorization (see the motors section)
- Working traverse end locked by safety pins
- Threaded valve connection
- Optional adaptors available for valves with PN or ANSI flanges
- Optional thin thread version for drilling up to 64bar for models 325 – 530 – 330/1000
- Optional stainless steel or aluminum alloy construction versions
Drilling machine for DN 3/4″ to 2″ on steel, cast iron, polyethylene and cement/asbestos pipes with pressure up to 12 bar.

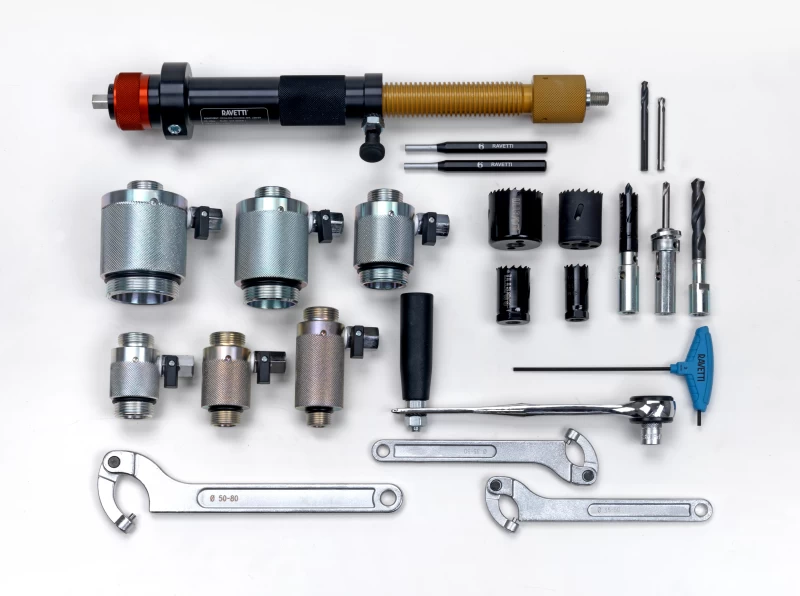

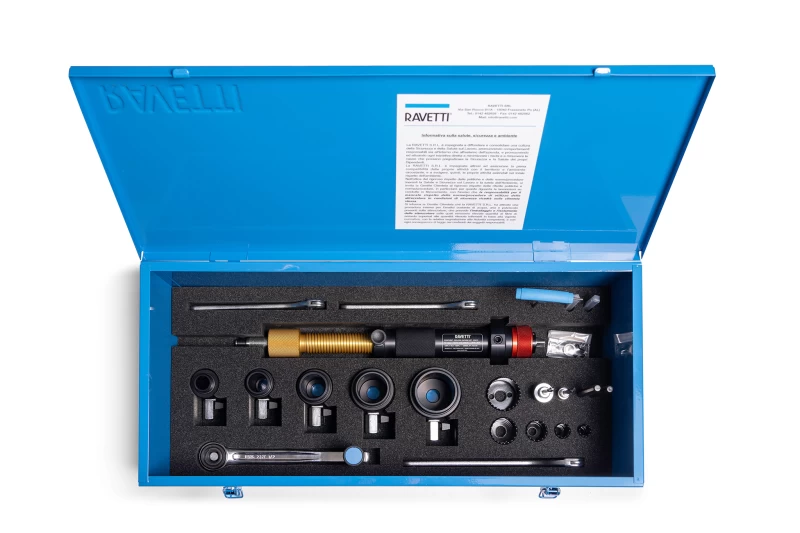

The art. 230 though of compact dimensions offers excellent performance being equipped with the releasing device of the upper part of the machine and, important feature, to be used in situations in which a long drilling traverse is required. Supplied with metal box, ratchet and wrenches, HSS hole saws AV type for steel and cast iron.
PIPE DRILLING MACHINES art. 230/19
| Ø | WEIGHT (kg) |
| 1/2” | 3,5 |
| 3/4” | 3,7 |
| 1” | 3,7 |
| 1”1/4 | 3,8 |
| 1”1/2 | 4,2 |
| 2” | 4,5 |
PIPE DRILLING DIAMETERS (mm)
| Ø O.D. | Ø BORE |
| 21,3 | 14 |
| 26,9 | 17 |
| 33,7 | 21 |
| 42,4 | 29 |
| 48,3 | 37 |
| 60,3 | 46 |
