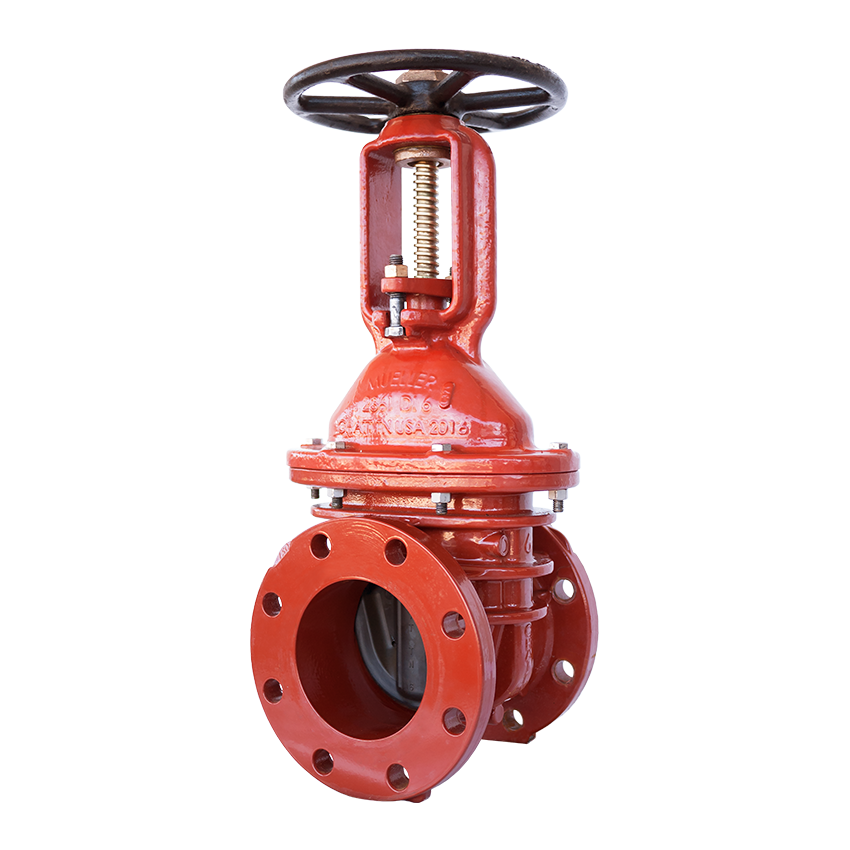

OS&Y RESILIENT WEDGE GATE VALVE WITH FLANGED ENDS 4-12″
R-USP1: O.S.&Y. RESILIENT WEDGE GATE VALVE WITH FLANGE ENDS
Specifications:
- 4″, 6″, 8″, 10″ and 12″ sizes
- UL 262 listed and FM 1120/1130 approved and certified to ANSI/NSF 61 & 372
- Iron body with Mueller® PRO-GARD® Fusion Bonded Epoxy Coated interior and exterior surfaces
- Outside Screw & Yoke (OS&Y)
- Adjustable packing
- Rubber encapsulated iron wedge
- Handwheel – open left or open right
- 350psig (2400 kPa/24 barg) maximum working pressure – 700psig (4800 kPa/48 barg) static test
- Epoxy coating meets or exceeds ANSI/AWWA C550
- Flanged end drilling complies with ASME/ANSI
B16.1 class 125 and B16.42 class 150*** - Meets or exceeds all applicable requirements of ANSI/AWWA C515
65
People watching this product now!
Description
Options:
- Stainless steel stems: Type 304, 316, or 431
- ASTM B98-C66100/H02 stem
- PN10/PN16 drilling
- EPDM disc and O-rings
Resources:
