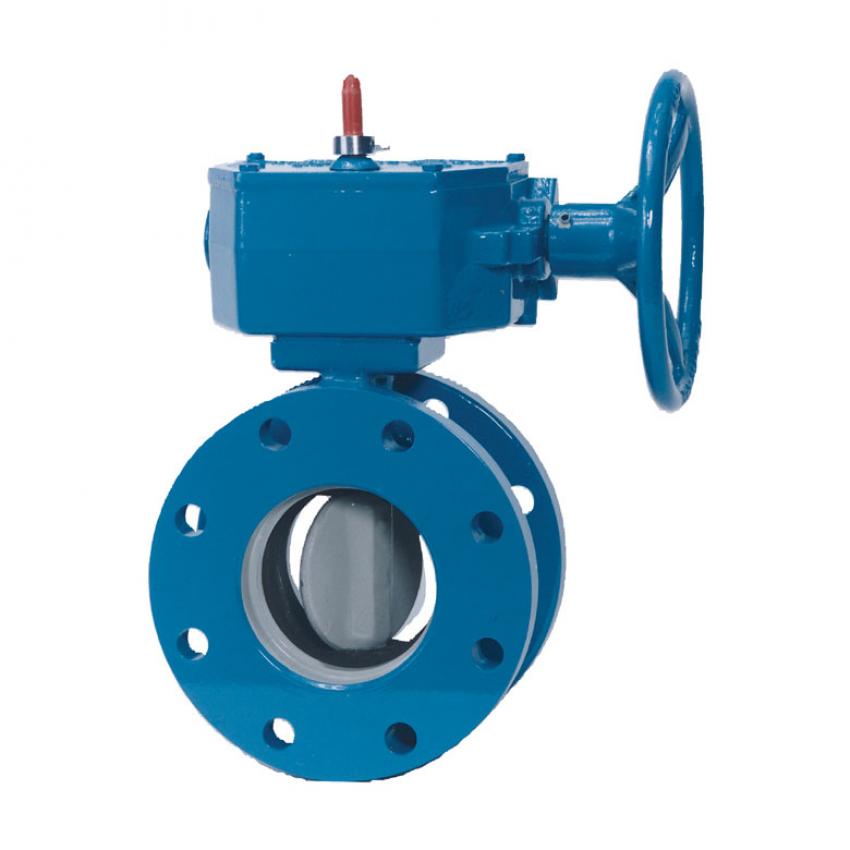

2FII Bonded Seat
Specifications:
- Sizes: 3″ – 20″
- Body Style: Flanged x flanged ends
- Other Body Style Options:
- Mechanical joint
- Flanged & mechanical joint
- Push-on
- Push-on & flanged
- Pressure Class: Class 150B per AWWA Standard C504
- Working Pressure: 150 psig
- Flanges: Flat faced and drilled in accordance with ANSI B16.1, Class 125 standards
- Rubber Seat: Bonded seat-in-body
- Actuation Options:
- Pratt hand lever
- MDT manual actuator with AWWA nut, handwheel or chain wheel
- Pratt Dura-Cyl® hydraulic or pneumatic cylinder
63
People watching this product now!
Description
Resources:
- 3″-20″ 150B & 250B BFV Parts & Materials Cross Section List Submittal Drawing (GA-11486)
- 3″-20″ Flange 2FII 150B BFV With MDT Manual HW, CHW, Nut Submittal Drawing (GA-11864)
- 3″-20″ 150B & 250B BFV Parts & Materials Al Bz Disc Submittal Drawing (GA-12091)
- 3″-10″ Flange 2FII 150B BFV Handlever & RPB Submittal Drawing (S-2006)
- 3″-20″ Flange 2FII 150B BFV With MDT Duracylinder RPB Submittal Drawing (S-2007)
- 3″-20″ Flange 2FII 150B BFV MDT Manual HW, CHW, Nut RPB Submittal Drawing (S-2008)
- 3″-10″ Flange 2FII 150B BFV With Handlever Submittal Drawing (S-2012)
- 3″-20″ Flange 2FII 150B BFV With MDT Duracylinder Submittal Drawing (S-2013)
