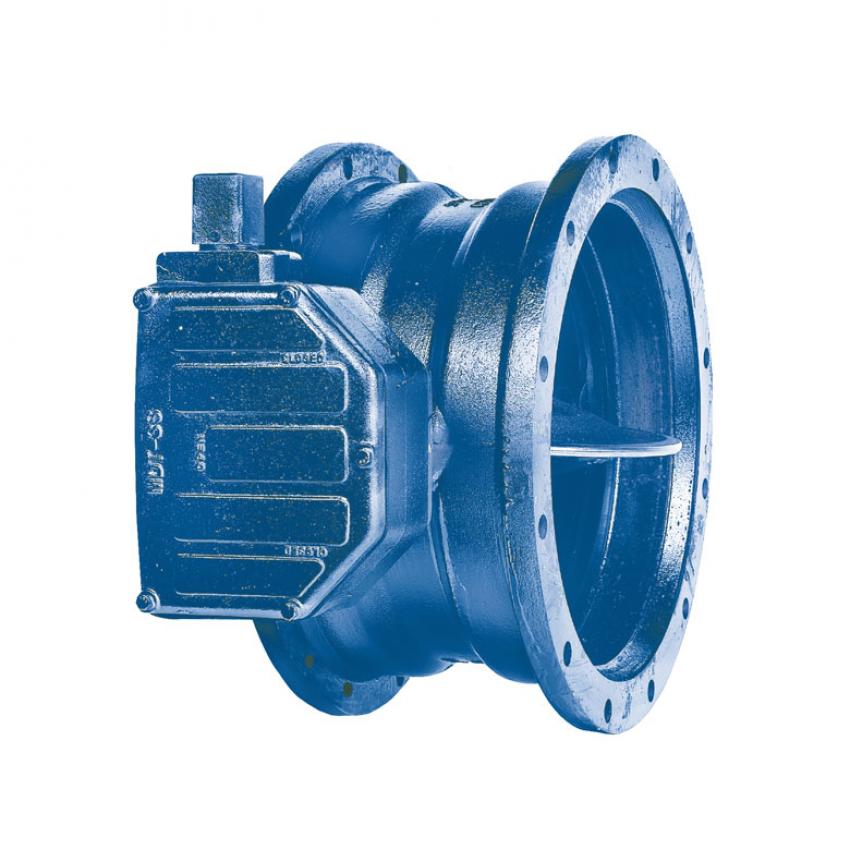

4” – 72” Groundhog®
Specifications:
- Sizes: 4″ – 72″
- Body: Cast Iron
- End Connection Options:
- Flanged ends
- Mechanical Joint Ends (up to 48″)
- Wafer and Victaulic® Couplings
- Push-on joint (12”, 16”)
- Push-on x flange (12”, 16”) for C900 PVC and ductile iron pipe
- Pressure Class: *Class 150B per AWWA Standard C504
- Actuators: Pratt traveling nut design actuator in strict compliance with AWWA C504 latest revision. Specially designed and built for buried service.
- Service: Distribution, potable or raw water
- Accessories: DIVINER® ground-level position indicator, handwheel, extension stem (standard and slipjoint).
- *Valves can be tested for 200 psi upon request.
13
People watching this product now!
Description
Resources:
- 4″-20″ Mechanical Joint 150B BFV MDT Buried Service Act Submittal Drawing (GA-10705)
- 24″-48″ Mechanical Joint 150B BFV MDT Buried Service Act Submittal Drawing (GA-11301)
- 24″-72″ Flange 150B BFV with MDT Buried Service Act Submittal Drawing (GA-11304)
- 24″ 150B BFV Parts & Materials Cross Section List Submittal Drawing (GA-11337)
- 30″ & Up 150B BFV Parts & Materials Cross Section List Submittal Drawing (GA-11338)
- 6″-20″ Flange X Mechanical Joint 150B BFV MDT Buried Service Submittal Drawing (GA-11425)
- 24″-36″ Flange X Mechanical Joint 150B BFV MDT Buried Service Submittal Drawing (GA-11426)
- 3″-20″ Flanged 150B BFV with MDT Buried Service Actuator Submittal Drawing (GA-11444)
- 3″-20″ 150B BFV Parts & Materials Cross Section List Submittal Drawing (GA-11486)
- Installation, Operation and Maintenance Manual: 3″ – 20″ Bonded Seat (form 13802)
- Installation, Operation and Maintenance Manual: 24″ & Larger (form 13801)
- Operation and Maintenance Manual: Diviner Position Indicator (form 13804)
